Examples:

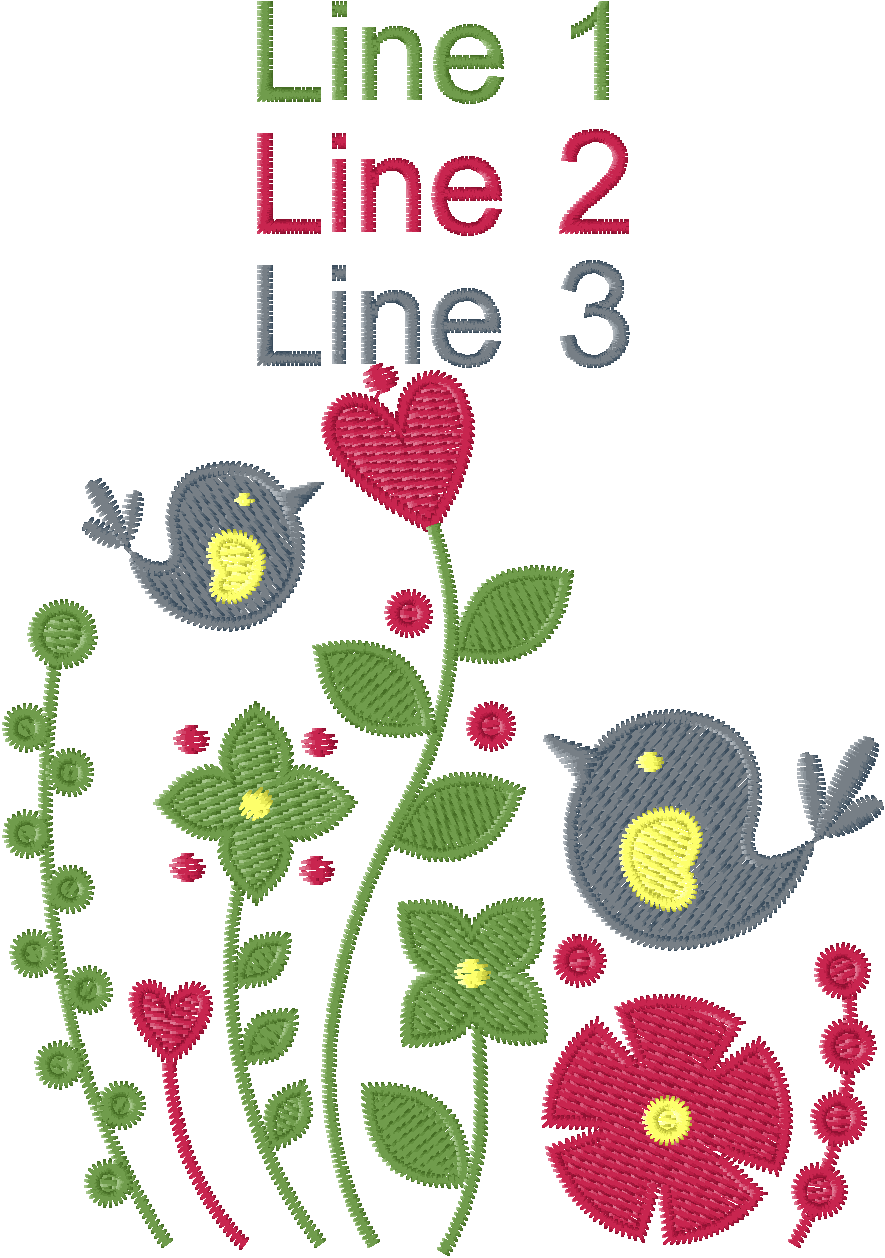

# Top - above the design
"TextAlignment": {
"Mode": "Top",
"Alignment": 0,
"DistanceMM": 0
}
"TextAlignment": {
"Mode": "Top",
"Alignment": 1,
"DistanceMM": 0
}
"TextAlignment": {
"Mode": "Top",
"Alignment": 2,
"DistanceMM": 0
}

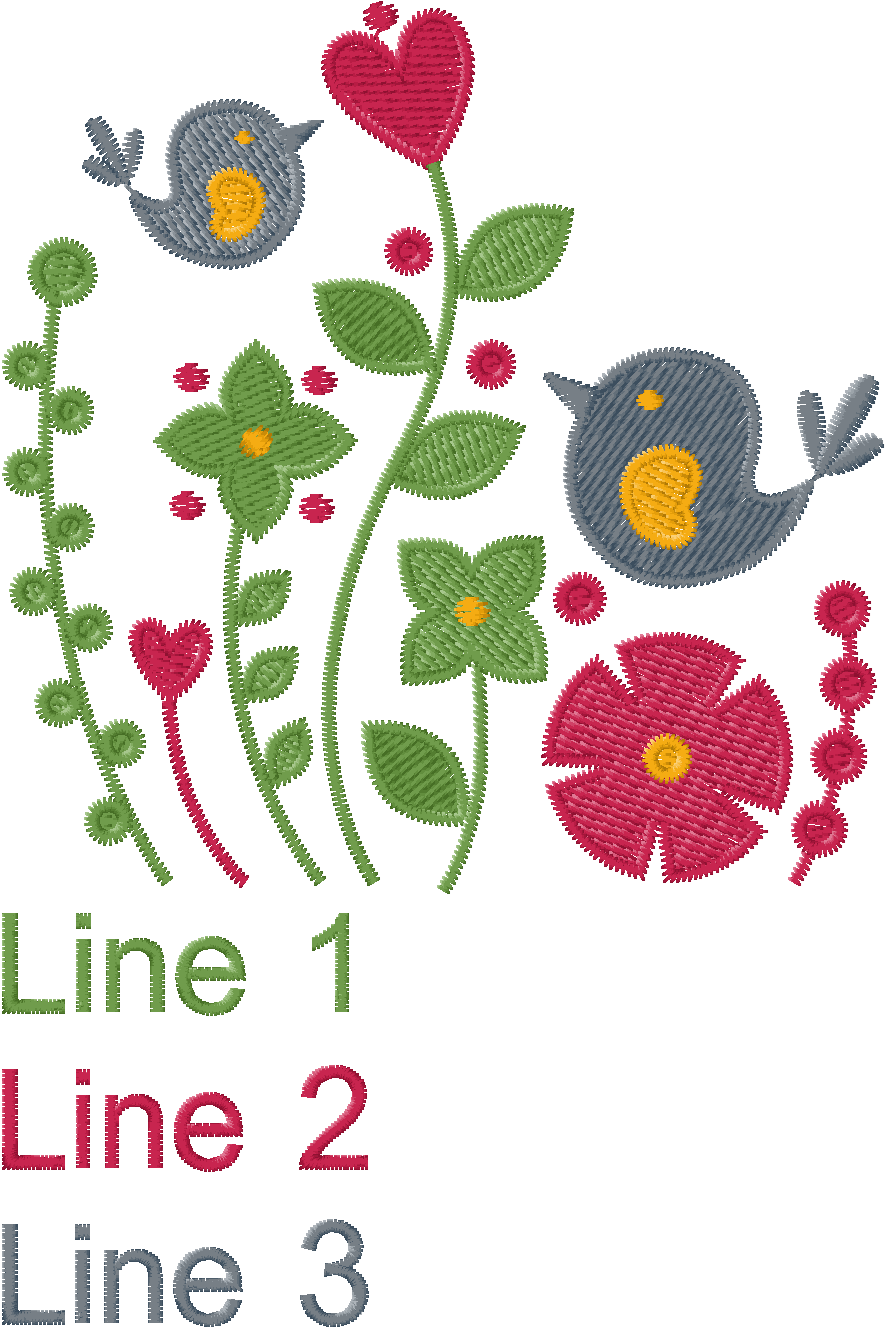

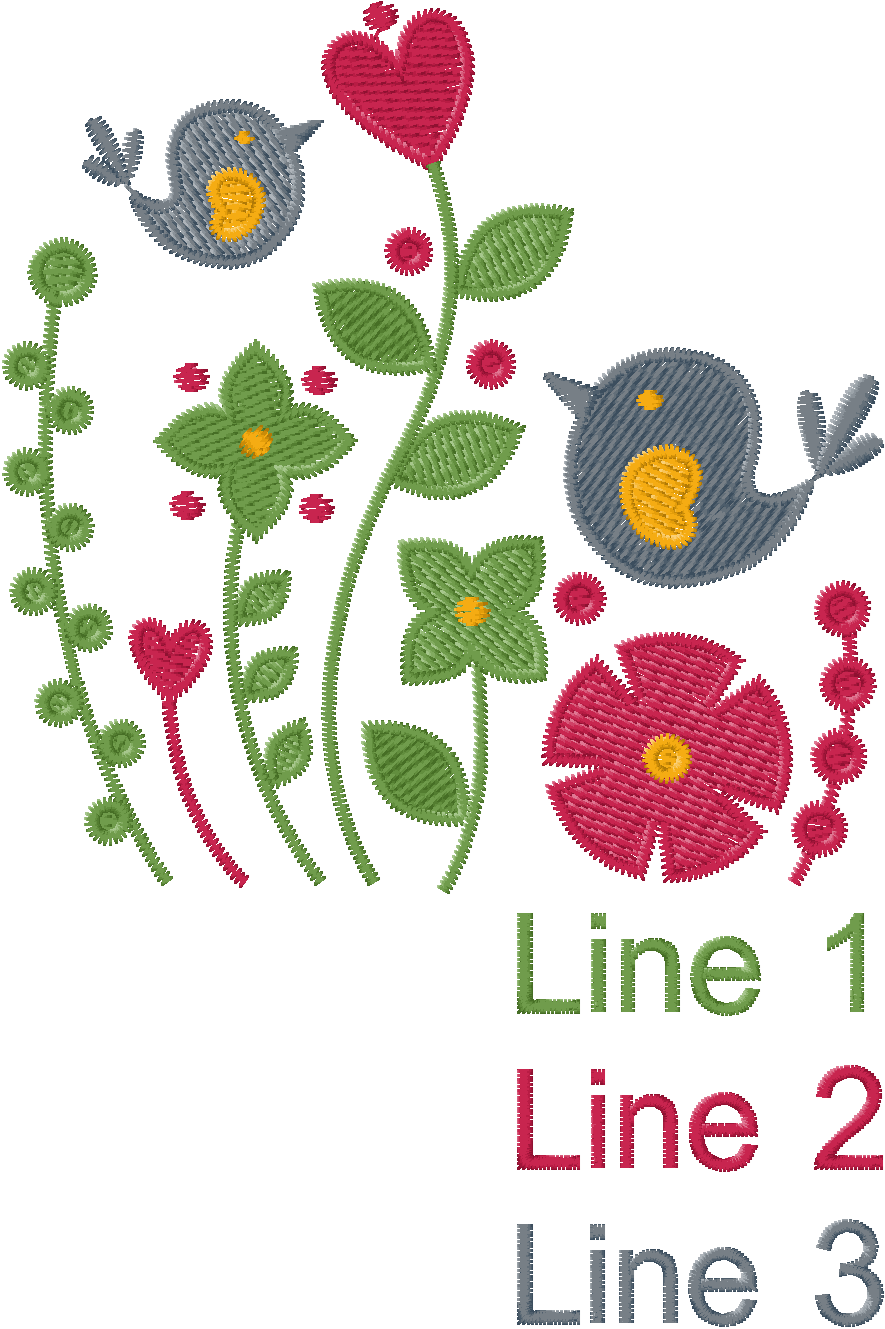

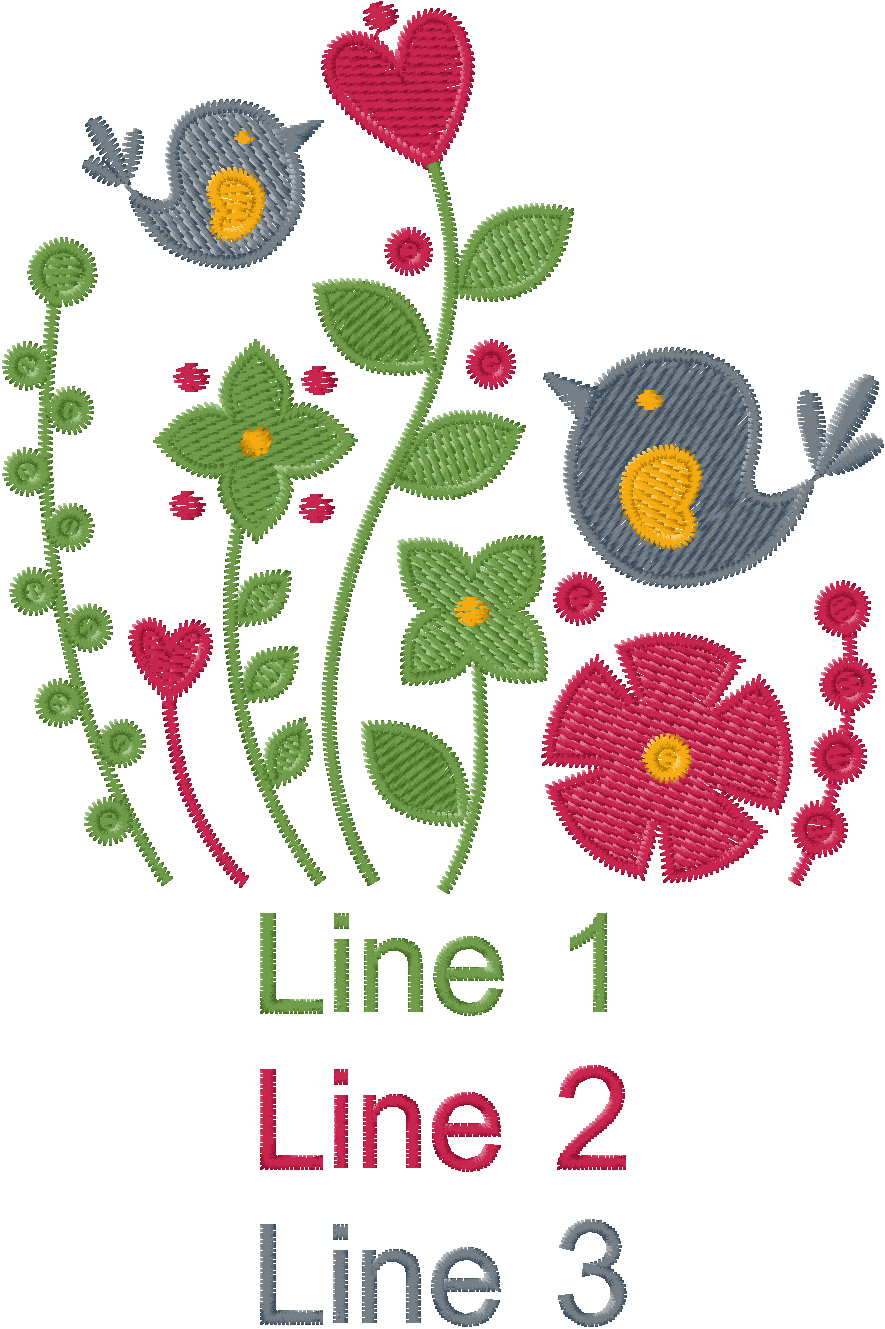

# Bottom - below the design
"TextAlignment": {
"Mode": "Bottom",
"Alignment": 0,
"DistanceMM": 0
}
"TextAlignment": {
"Mode": "Bottom",
"Alignment": 1,
"DistanceMM": 0
}
"TextAlignment": {
"Mode": "Bottom",
"Alignment": 1,
"DistanceMM": 0
}

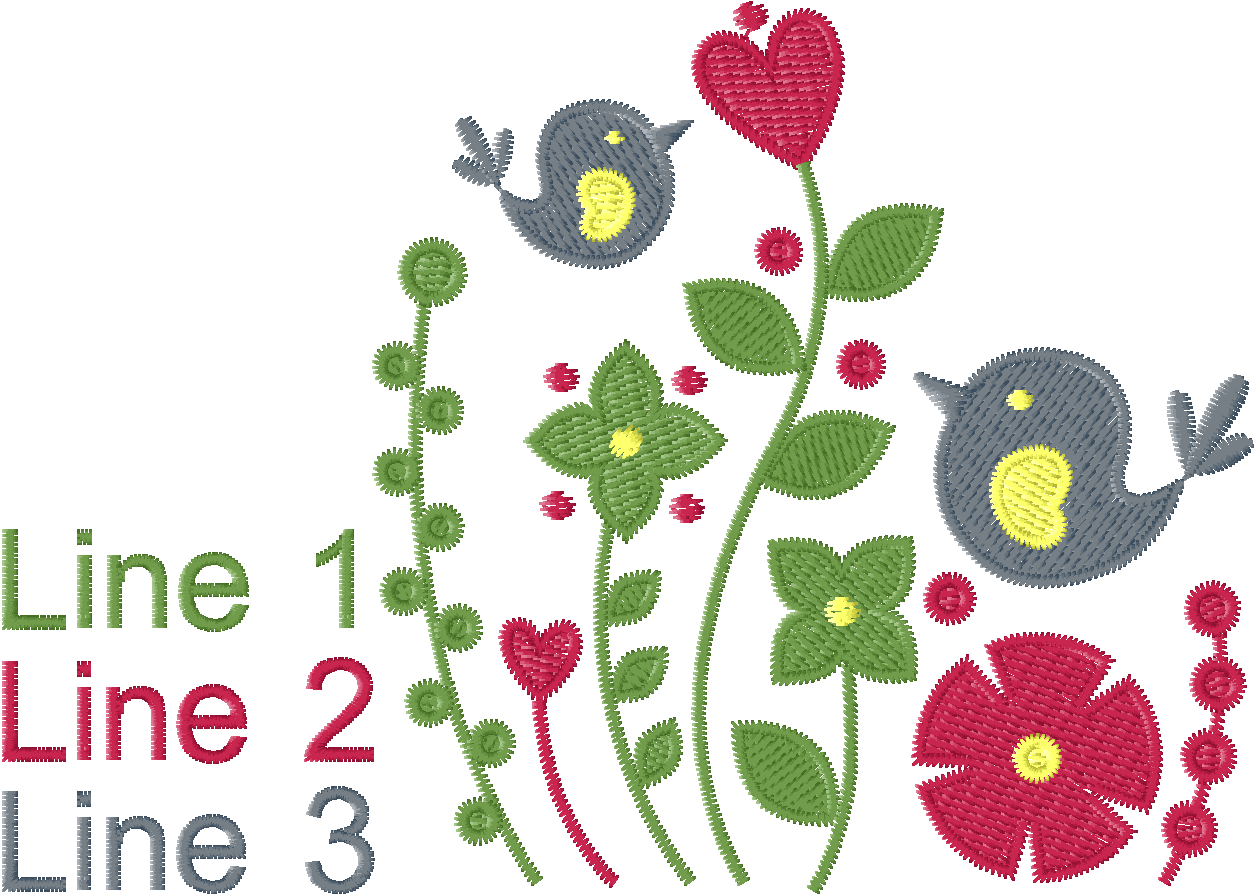

# Left - left to the design
"TextAlignment": {
"Mode": "Left",
"Alignment": 0,
"DistanceMM": 0
}
"TextAlignment": {
"Mode": "Left",
"Alignment": 1,
"DistanceMM": 0
}
"TextAlignment": {
"Mode": "Left",
"Alignment": 2,
"DistanceMM": 0
}

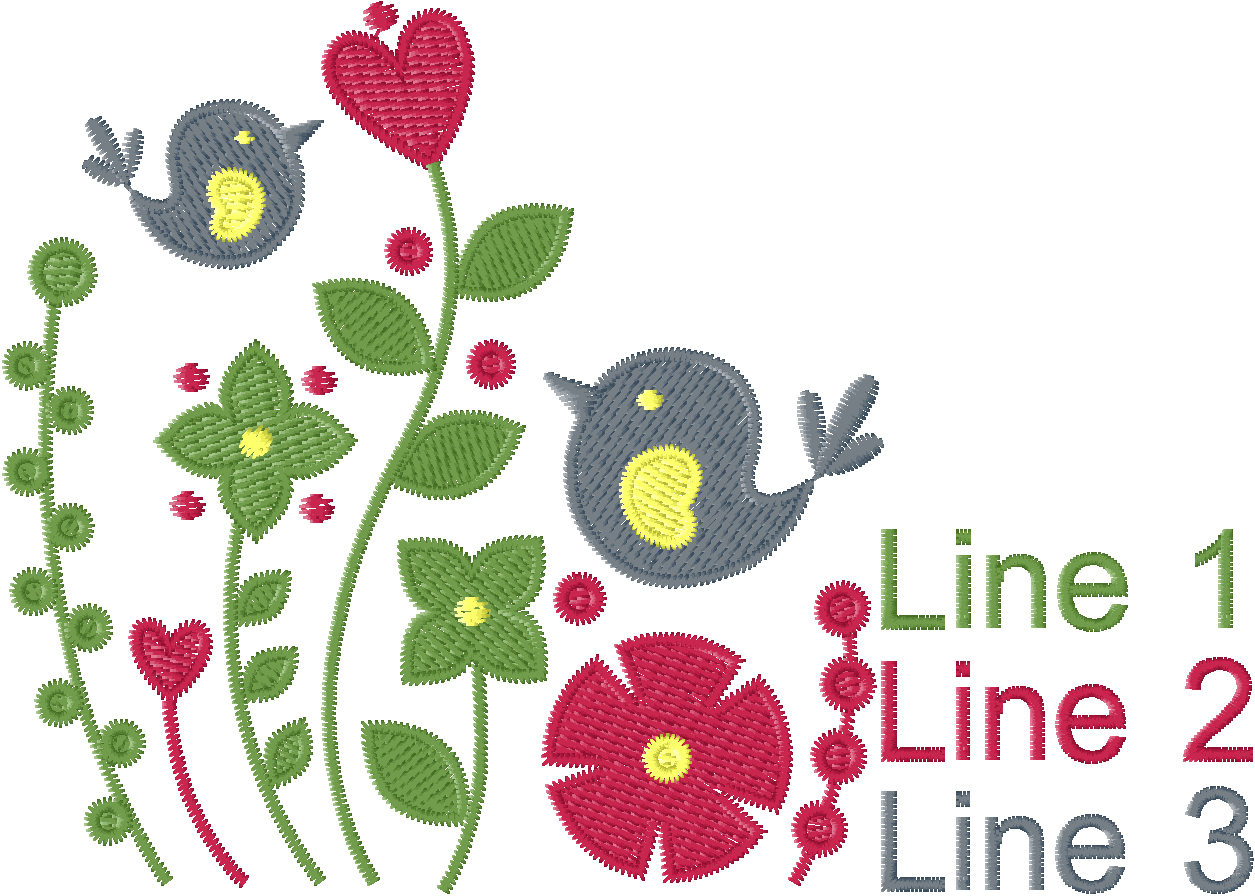

# Right - right to the design
"TextAlignment": {
"Mode": "Right",
"Alignment": 0,
"DistanceMM": 0
}

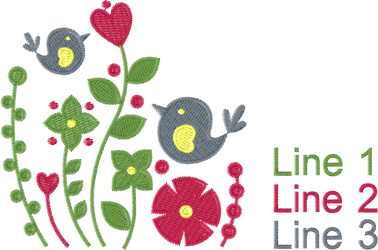

Same as above, but with a distance of 10 mm!
"TextAlignment": {
"Mode": "Right",
"Alignment": 0,
"DistanceMM": 10
}

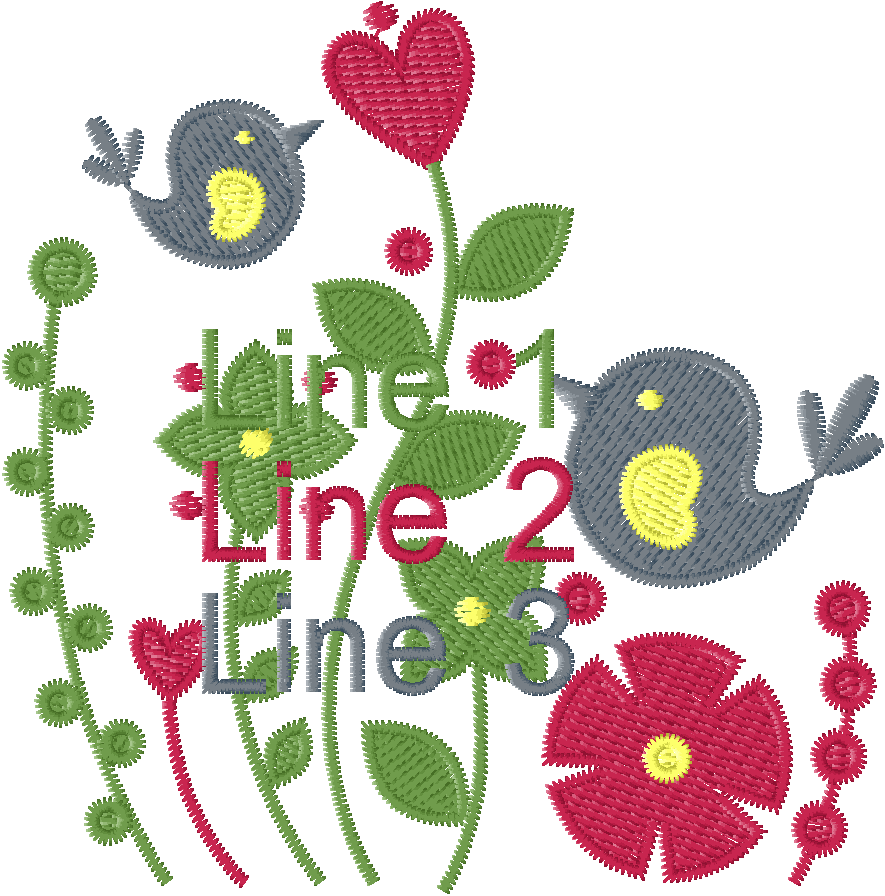

# Manual - determines the position with parameters
"TextAlignment": {
"Mode": "Manual",
"xPosMM": 20.0,
"yPosMM": 20.0
}
